OptiWell™ Deep Well Plates (96)

Available in over 25 different types, The OptiWell™ line of Deep Well Plates is compatible with all popular automated research platforms and robotic equipment. These plates are useful for bacterial cultures, centrifugation (4000xg max RCF) and general sample storage. They can be used with silicone sealing mats and various types of sealing film. All plates are produced in a class 100,000 cleanroom facility and are ANSI / SLAS 1-2004 compliant. Although all OptiWell™ plates are autoclavable, several types are also available presterilized by gamma irradiation in accordance with ISO 13485. All plates are certified RNase/DNase free and non-pyrogenic.



• 96-Well – 24-well, 48-well, and 384-well configurations available



• For automated research platforms / robotic equipment



• Minimal binding / liquid retention



• Black printed alpha-numerics



• Virgin, medical-grade polypropylene



• Choose from U (round), V (conical), F (flat) bottoms



Download Plate-Mat Compatibility Chart

Categories: ,

Ordering Information

OptiWell™ Deep Well Plates, Sterile 96 Well w/ Mats

Cat. No DescriptionSealing Mat CompatibilityQtyList Price
D3096-01SOptiWell™ Deep Well Plate, 96 Round Well, 0.36mL, 14.75mm height, V-bottom, Black Alphanumeric Printing PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$534.56
D3096-03SOptiWell™ Deep Well Plate, 96 Round Well, 0.4mL, 14.75mm height, U-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$534.56
D3096-05sOptiWell™ Deep Well Plate, 96 Round Well, 0.4mL, 14.75mm height, F-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$534.56
D3096-07SOptiWell™ Deep Well Plate, 96 Round Well, 0.45mL, 14.50mm height, V-bottm, Black Alphanumeric Printing, PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-3100$534.56
D3096-09SOptiWell™ Deep Well Elution Plate, 96 Square Well, 0.5mL, 15.1mm height, V-bottom, Black Alphanumeric Printing, PP, STERILE, for KingFisher™ and Accuris IsoPURE™, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$205.60
D3096-11SOptiWell™ Deep Well Plate, 96 Round Well, 0.5mL, 14.5mm height, U-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-3100$534.56
D3096-13SOptiWell™ Deep Well Plate, 96 Square Well, 1.0mL, 24.4mm height, U-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 10 pieces, 100 / CS
D3320-5
D3320-9		100$565.40
D3096-15SOptiWell™ Deep Well Plate, 96 Round Well, 1.0mL, 33.0mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$283.73
D3096-17SOptiWell™ Deep Well Plate, 96 Round Well, 1.0mL, 33.0mm height, V-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$283.73
D3096-19SOptiWell™ Deep Well Plate, 96 Square Well, 1.0mL, 24.4mm height, V-bottom, STERILE for KingFisher™ and Accuris IsoPURE™, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CSD3320-5
D3320-9		100$565.40
D3096-21SOptiWell™ Deep Well Plate, 96 Round Well, 1.1mL, 27.0mm height, U-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-350$308.40
D3096-23SOptiWell™ Deep Well Plate, 96 Round Well, 1.1mL, 27.0mm height, V-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-350$308.40
D3096-25SOptiWell™ Deep Well Plate, 96 Square Well, 1.2mL, 24.0mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / Cs
D3320-5
D3320-9		50$205.60
D3096-27SOptiWell™ Deep Well Plate, 96 Round Well, 1.2mL, 31.5mm height, U-bottom, Nunc® Type, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-350$205.60
D3096-29SOptiWell™ Deep Well Plate, 96 Round Well, 1.2mL, 42.5mm height, F-bottom, ABgene™ Type , Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$205.60
D3096-31SOptiWell™ Deep Well Plate, 96 Square Well, 1.6mL, 31.6mm height, U-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$287.84
D3096-33SOptiWell™ Deep Well Plate, 96 Square Well, 1.6mL, 31.6mm height, V-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$287.84
D3096-35SOptiWell™ Deep Well Plate, 96 Round Well, 2.0mL, 44.3mm height, U-Bottom, Nunc® Type, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-350$205.60
D3096-37SOptiWell™ Deep Well Plate, 96 Round Well, 2.0mL, 44.3mm height, U-Bottom, for Hamilton®, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-350$205.60
D3096-39SOptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 44.2mm height, V-bottom, for KingFisher™ and Accuris IsoPURE™, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$205.60
D3096-41SOptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 41.6mm height, U-Bottom, Standard, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$205.60
D3096-43SOptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 41.9mm height, U-bottom, H-Style, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$205.60
D3096-45SOptiWell™ Deep Well Plate, 96 Square Well, 2.3mL, 41.7mm height, V-bottom, Black Alphanumeric Printing, PP, STERILE, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$287.84

OptiWell™ Deep Well Plates, 96 Well w/ Mats

Cat. No DescriptionSealing Mat CompatibilityQtyList Price
D3096-01OptiWell™ Deep Well Plate, 96 Round Well, 0.36mL, 14.75mm height, V-bottom, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$431.76
D3096-03OptiWell™ Deep Well Plate, 96 Round Well, 0.4mL, 14.75mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$431.76
D3096-05OptiWell™ Deep Well Plate, 96 Round Well, 0.4mL, 14.75mm height, F-bottom, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-11
D3320-13		100$431.76
D3096-07OptiWell™ Deep Well Plate, 96 Round Well, 0.45mL, 14.50mm height, V-bottm, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-3100$431.76
D3096-09OptiWell™ Deep Well Elution Plate, 96 Square Well, 0.5mL, 15.1mm height, V-bottom, Black Alphanumeric Printing, PP, for KingFisher™ and Accuris IsoPURE™, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$164.48
D3096-11OptiWell™ Deep Well Plate, 96 Round Well, 0.5mL, 14.5mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-3100$431.76
D3096-13OptiWell™ Deep Well Plate, 96 Square Well, 1.0mL, 24.4mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-5
D3320-9		100$462.60
D3096-15OptiWell™ Deep Well Plate, 96 Round Well, 1.0mL, 33.0mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$232.33
D3096-17OptiWell™ Deep Well Plate, 96 Round Well, 1.0mL, 33.0mm height, V-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$232.33
D3096-19OptiWell™ Deep Well Plate, 96 Square Well, 1.0mL, 24.4mm height, V-bottom, for KingFisher™ and Accuris IsoPURE™, Black Alphanumeric Printing, PP, 10 bags of 10 pieces, 100 / CS
D3320-5
D3320-9		100$462.60
D3096-21OptiWell™ Deep Well Plate, 96 Round Well, 1.1mL, 27.0mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-350$257.00
D3096-23OptiWell™ Deep Well Plate, 96 Round Well, 1.1mL, 27.0mm height, V-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-350$257.00
D3096-25OptiWell™ Deep Well Plate, 96 Square Well, 1.2mL, 24.0mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / Cs
D3320-5
D3320-9		50$164.48
D3096-27OptiWell™ Deep Well Plate, 96 Round Well, 1.2mL, 31.5mm height, U-bottom, Nunc® Type, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-350$164.48
D3096-29OptiWell™ Deep Well Plate, 96 Round Well, 1.2mL, 42.5mm height, F-bottom, ABgene™ Type , Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-11
D3320-13		50$164.48
D3096-31OptiWell™ Deep Well Plate, 96 Square Well, 1.6mL, 31.6mm height, U-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$236.44
D3096-33OptiWell™ Deep Well Plate, 96 Square Well, 1.6mL, 31.6mm height, V-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$236.44
D3096-35OptiWell™ Deep Well Plate, 96 Round Well, 2.0mL, 44.3mm height, U-Bottom, Nunc® Type, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-350$164.48
D3096-37OptiWell™ Deep Well Plate, 96 Round Well, 2.0mL, 44.3mm height, U-Bottom, for Hamilton®, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-350$164.48
D3096-39OptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 44.2mm height, V-bottom, for KingFisher™ and Accuris IsoPURE™, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$164.48
D3096-41OptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 41.6mm height, U-Bottom, Standard, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$164.48
D3096-43OptiWell™ Deep Well Plate, 96 Square Well, 2.2mL, 41.9mm height, U-bottom, H-Style, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$164.48

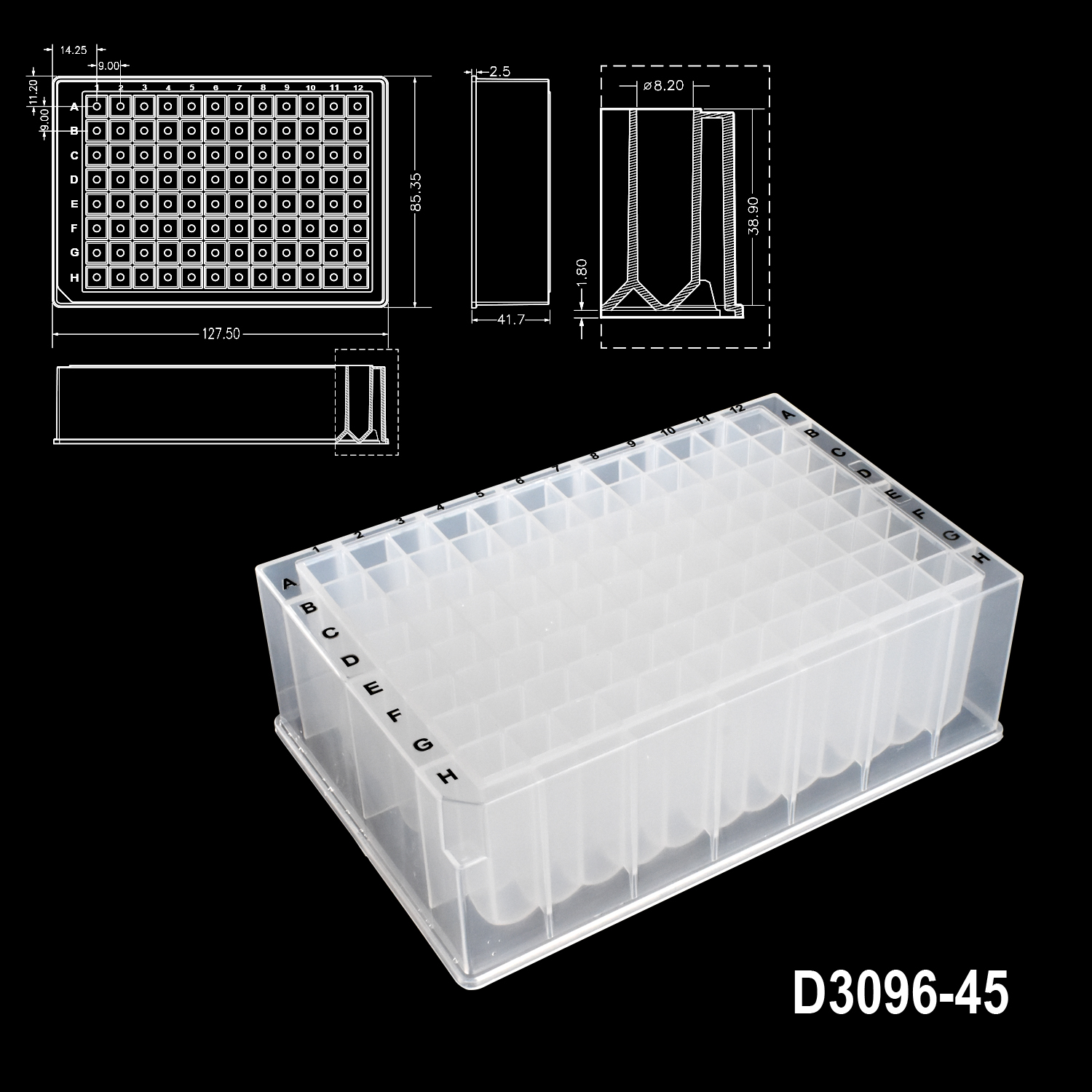

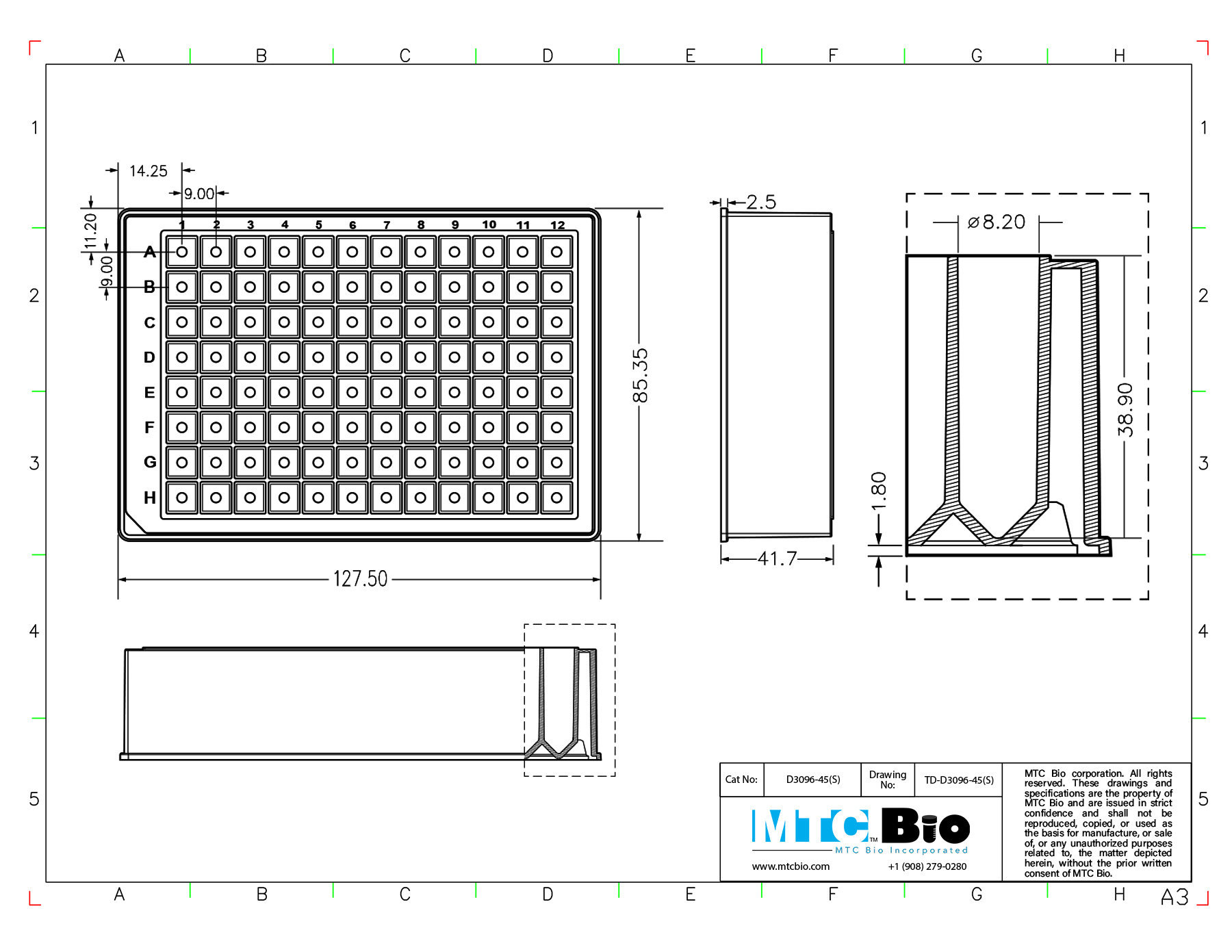

D3096-45OptiWell™ Deep Well Plate, 96 Square Well, 2.3mL, 41.7mm height, V-bottom, Black Alphanumeric Printing, PP, 10 bags of 5 pieces, 50 / CS
D3320-5
D3320-9		50$236.44
KingFisher™, Nunc™, and ABgene™ are trademarks of Thermo Fisher Scientific
Hamilton® is owned and/or registered by Hamilton Company in the U.S. and/or other countries
